Copper rod&strip productionRod Production

Pickling line

Release TIme:2019-04-04

1. Parameters


Pickling line

 Strip inlet thickness: 0.1mm-1.5mm /0.5mm- 3.5mm

 Maximum strip width: 650mm

 Processing speed: 60-80m/min

Five working mode

 1.preparing mode

 2.strip threading mode

 3.running mode

 4.pause mode

 5. Emergency stop mode

Tension control

 By S-roller (thickness less than 2mm)

 By straightening roll (thickness 2mm-4mm)

Bell annealing furnace (Used for copper/copper alloy or steel strips, tubes, billets bright annealing)

 Temperature uniformity: ±5

 Protection gas: N2 or ­­H2

 Loading capacity: customized


2. Reference

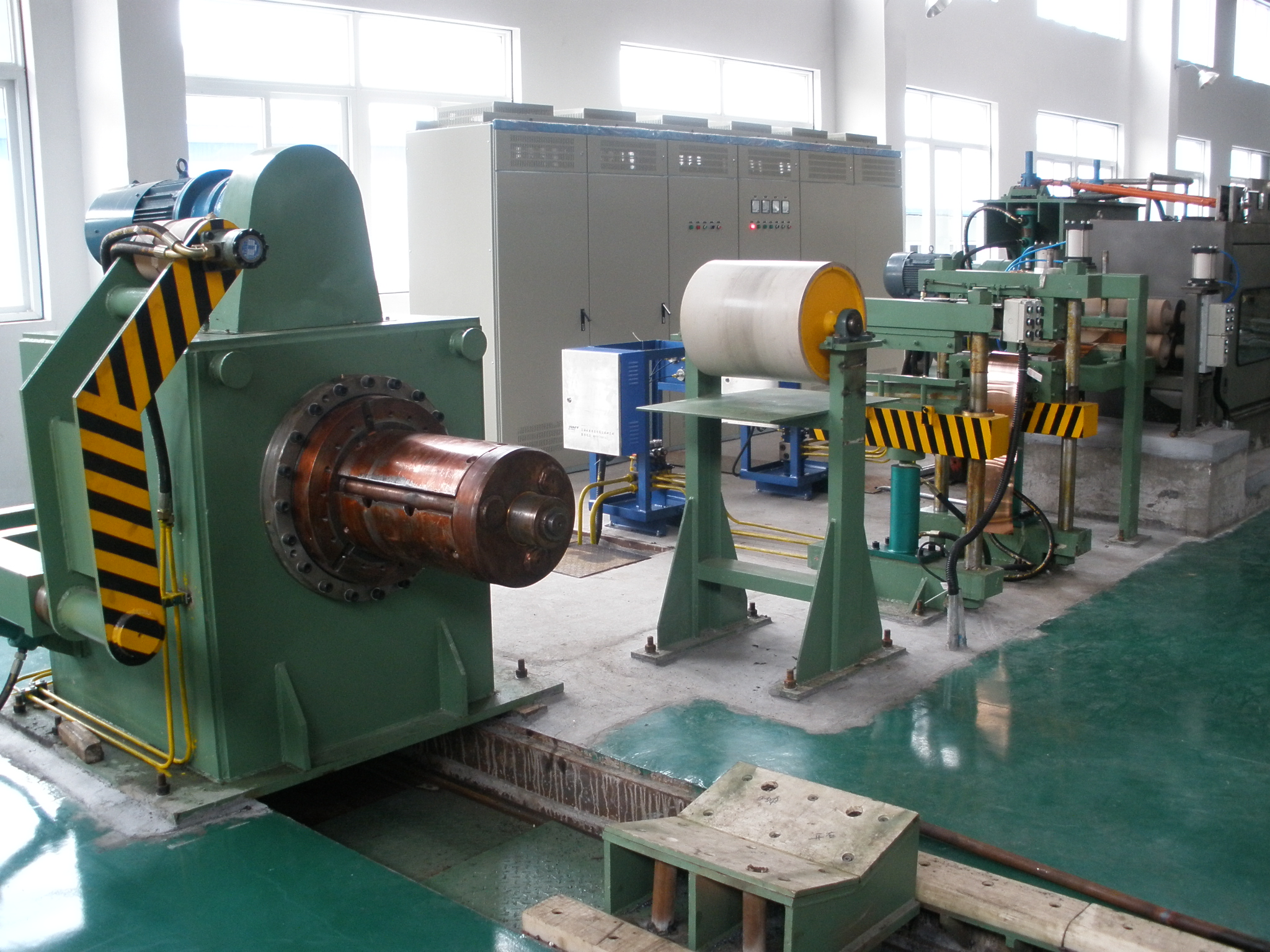

Pickling line 1

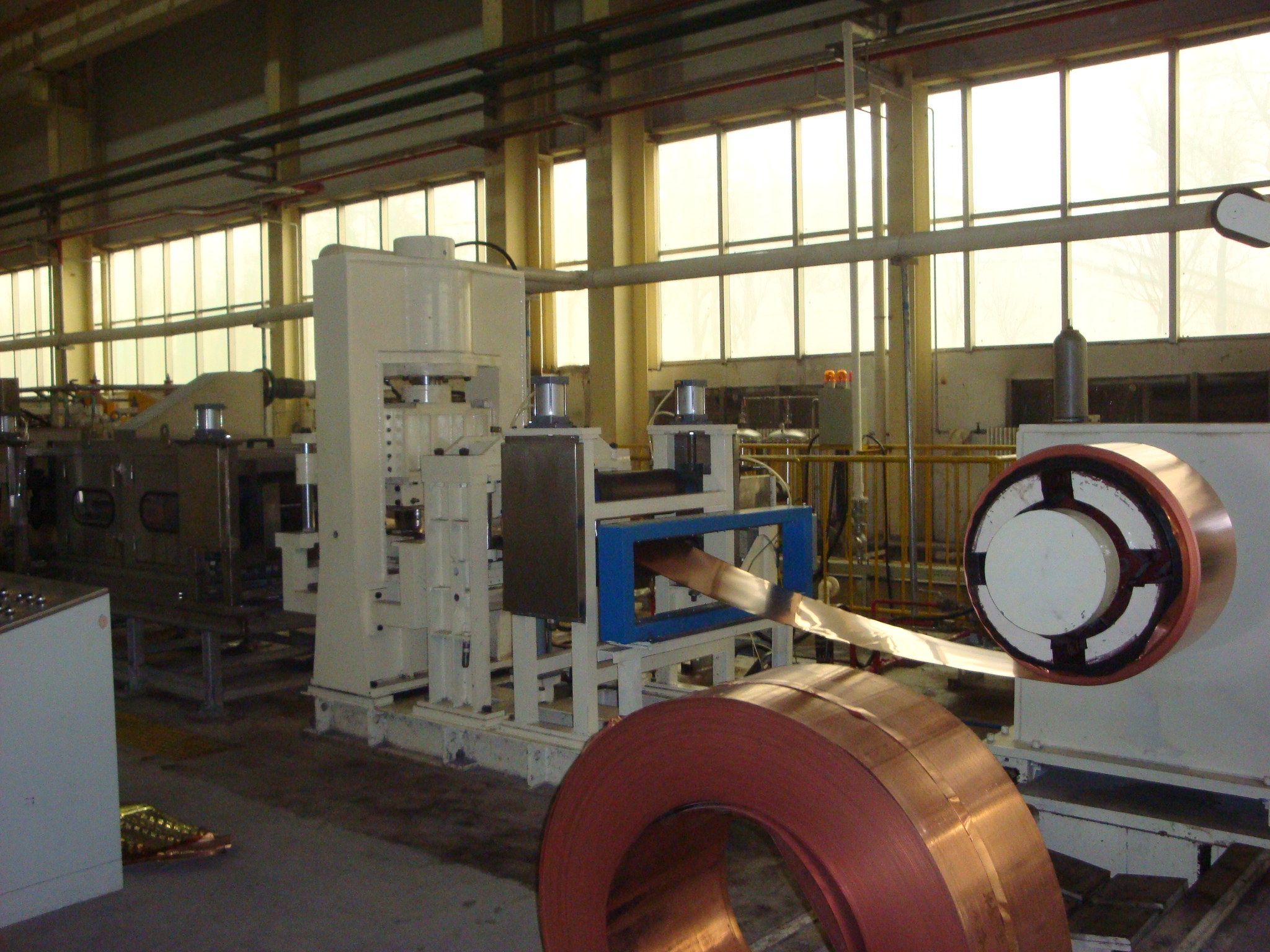

Pickling line 2


Pickling line 3

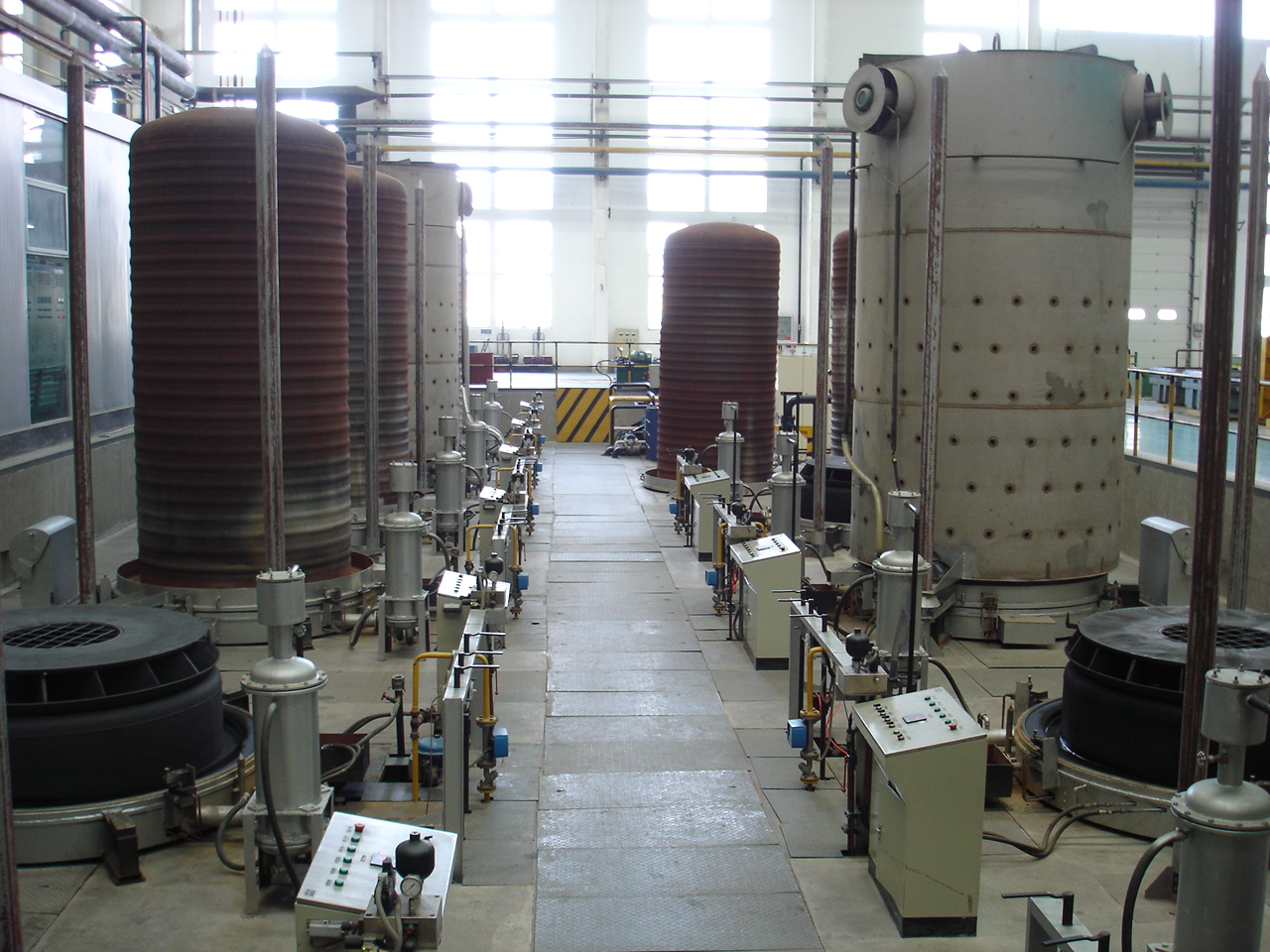

Bell annealing furnace

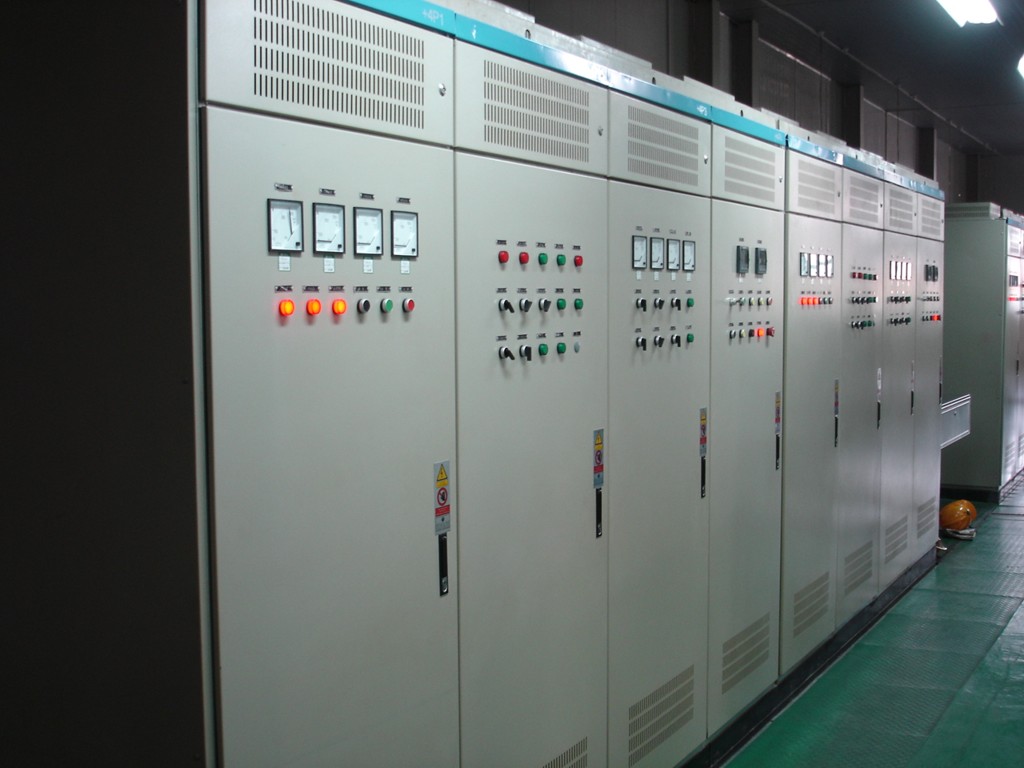

Control cabinet
