Strip casting Strip casting

Aluminum strip leveller

Release TIme:2019-04-01

Parameter:

Raw material
Al or Al alloy 1000,3003,8011 series
Yield strength
350MPa
Strip thickness
0.1~2.5mm
Strip width
800~1700mm
Max coil OD F2200mm
Line speed
Max:200m/min
Threading speed
15m/min
Max elongation
3%
Max tension
55 KN
Control accuracy of the elongation
±0.01%
Incoming strip shape condition
60I
Bending control plate type
5I


Reference:

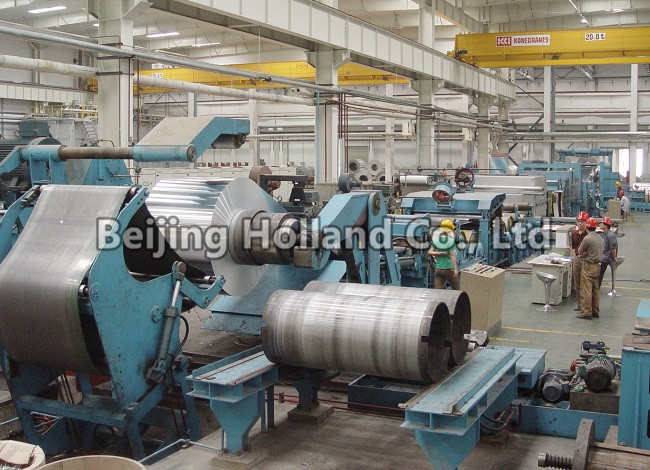

Photo 1: Tension leveller

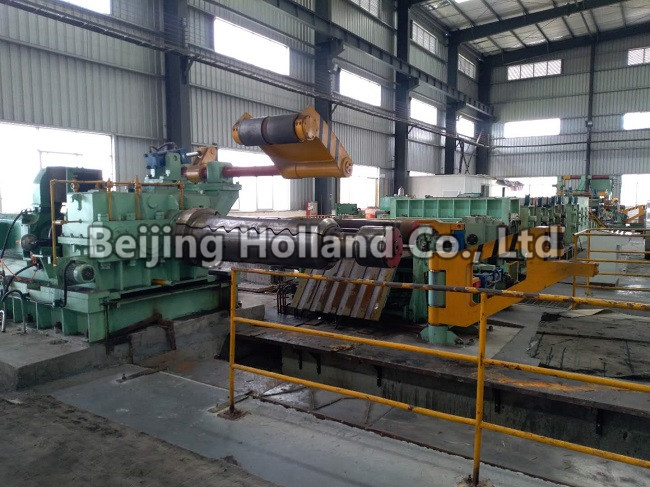

Photo 2: Tension leveller

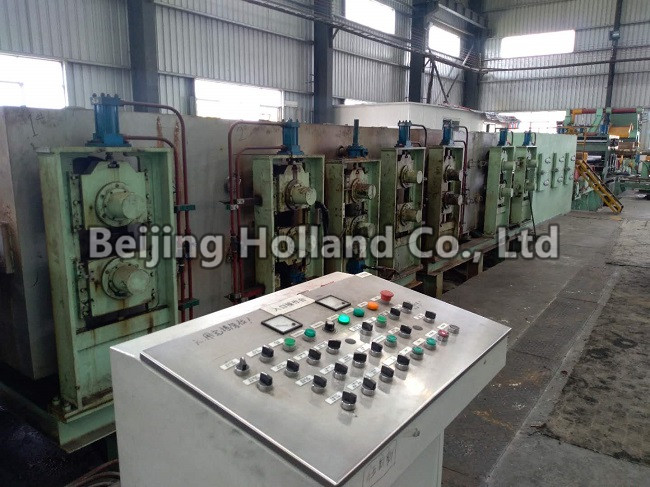

Photo 3: Tension leveller
