CCR Line

1.Application and Composition:

This plant works to produce low-oxygen glossy copper rod in 8mm diameter by means of continuous casting and rolling process, with cathode or red copper scrap as the feedstock.

The plant is composed of 1 sets of five-wheel casting machine, drive unit, roller shears, straightener and burring unit, shaver, rolling mill, coiler, and electrical control system.

2.Brief Process Flow:

Casting machine to get cast bar → roller shears → straightener → burring unit → shaver to treat cast bar → feed-in unit → rolling mill → cooling unit to quench rod → winding unit to pre-shape rod → star coiler to lay rod into coil.

3.Refined melted copper as Feedstock:

Refined and melted cooper from the furnace is flowed to the casting machine. The furnace is not included.

4.Main Technical Specifications:

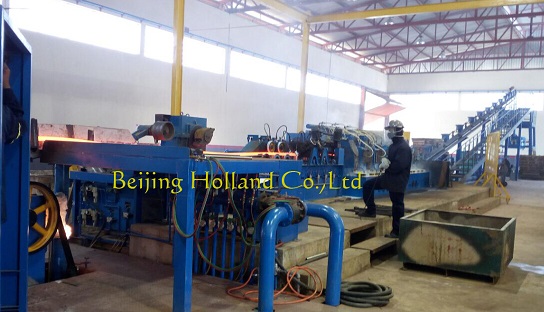

Overview

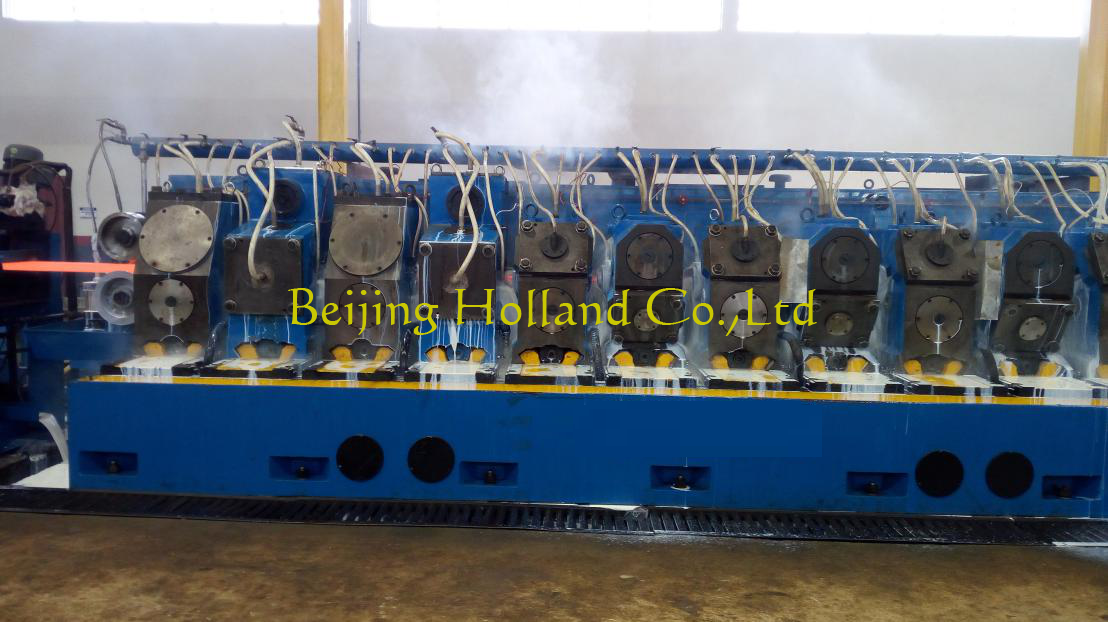

Continuous Rolling Mill

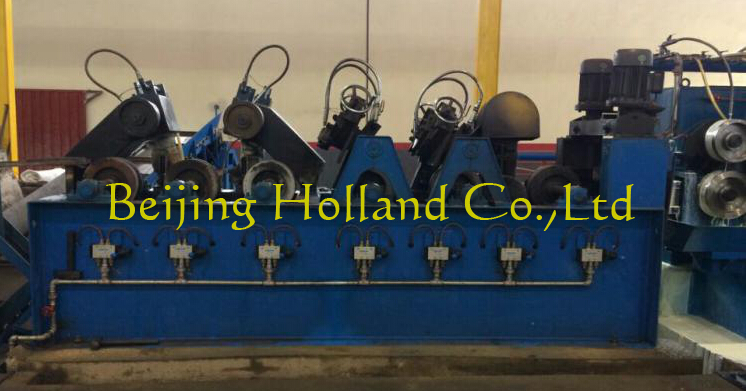

Straightener&Edge Shaving Device

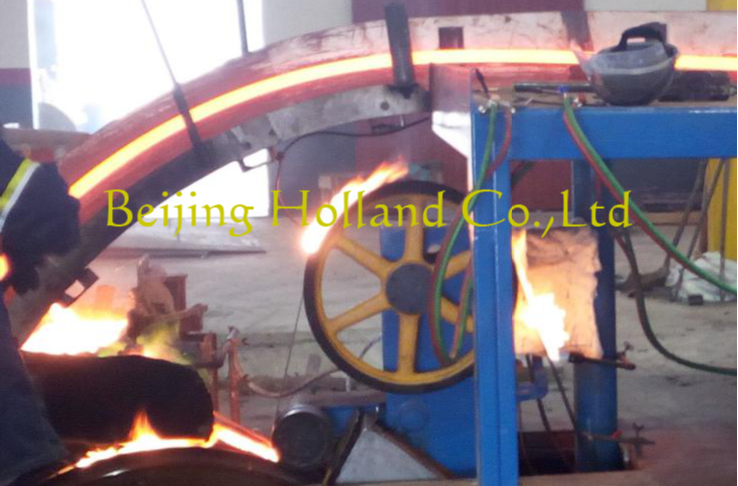

5-Wheel Casting machine

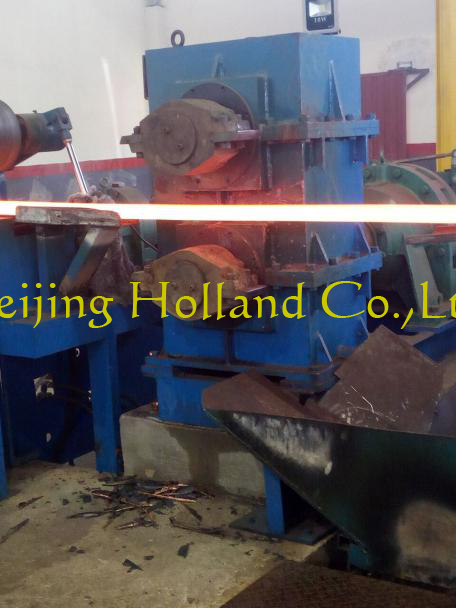

Roller Shears

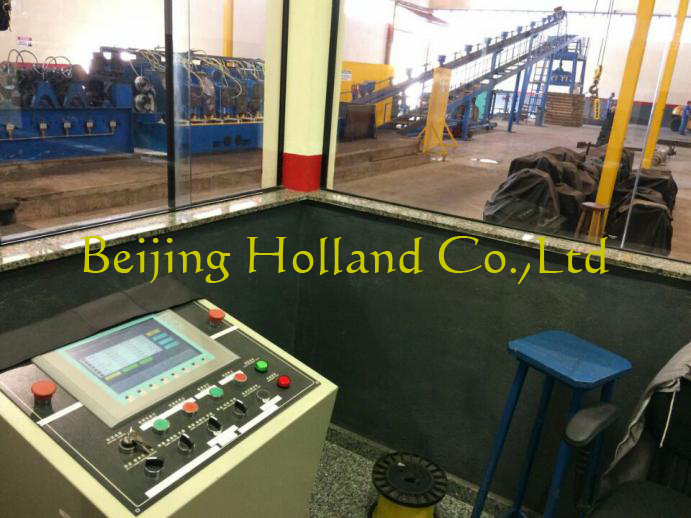

Electrical Control System
