Up Casting Line

   1. Summary

Upward continuous casting oxygen-free copper rod production line (called the plant as follow), it is used for producing the big length shining/bright oxygen-free copper rod, the big length shining oxygen-free copper tube pellet and the big length shining oxygen-free copper flat pellet, etc.

   2. Craftwork flow

Cathode copper/Scrap copper→melting furnace→transition house→holding furnace→casting machine (crystal molding) →casting rod→ take-up device → on sale or further producing

Put the cathode copper into the melting furnace of Q_L1 compounded furnace straightly. It will be melted into liquid by frequency inductor. And the liquid of copper will flood into the holding furnace automatically and smoothly pass through the transition house, and then it will be deoxidized by the charcoal covered. The liquid of copper will become casting rod quickly by the crystallizer of the casting machine in the holding furnace. Then it will be hauled by the double-withdrawal roller of the casting machine. When the casting rod is hauled off from the haul-off device, it will be led to take-up device through the idler pulley frame and take-up limited equipment.

3. Parameter

Customized according to the capacity

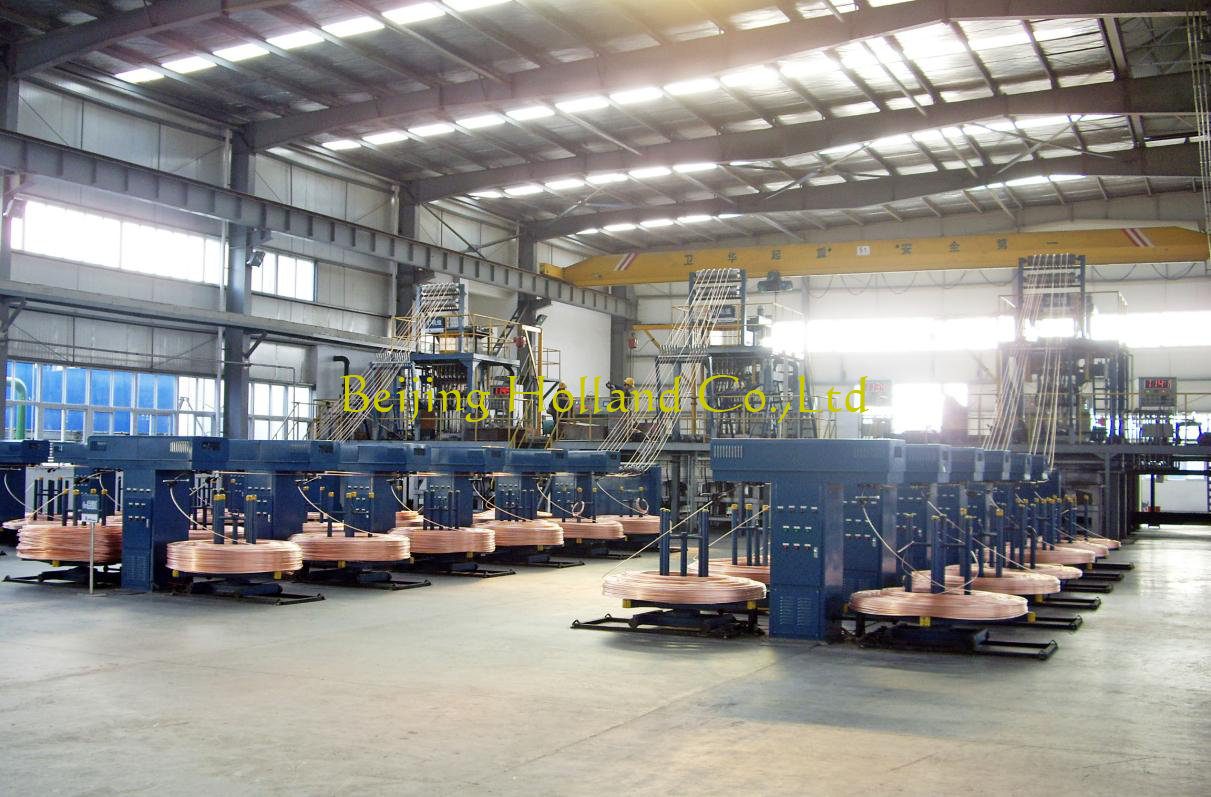

Overview

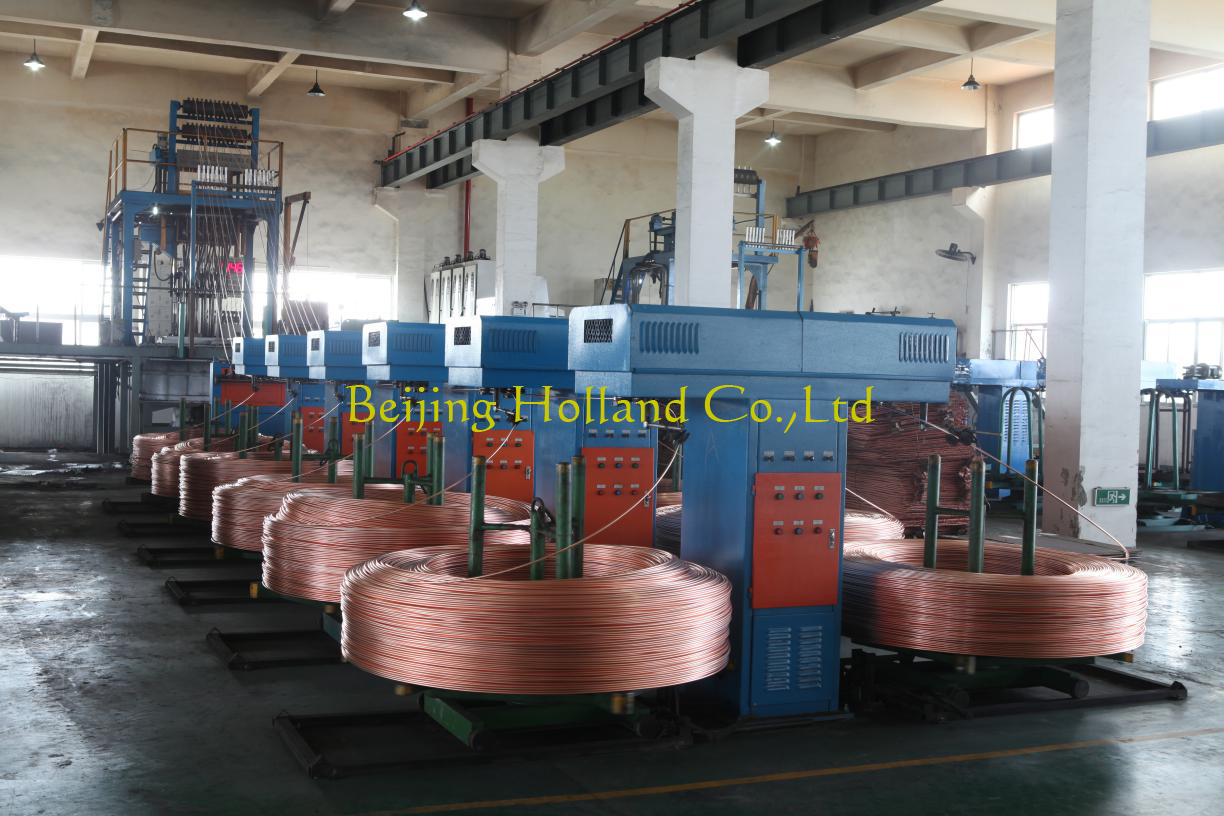

Take Up Machine

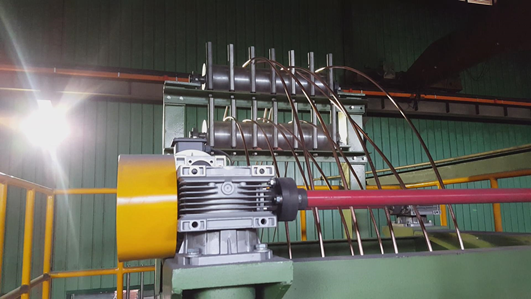

Rod Leading Rack

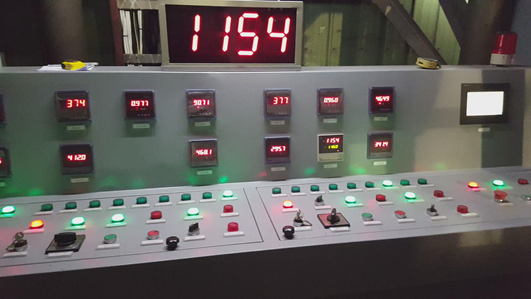

Electrical System
