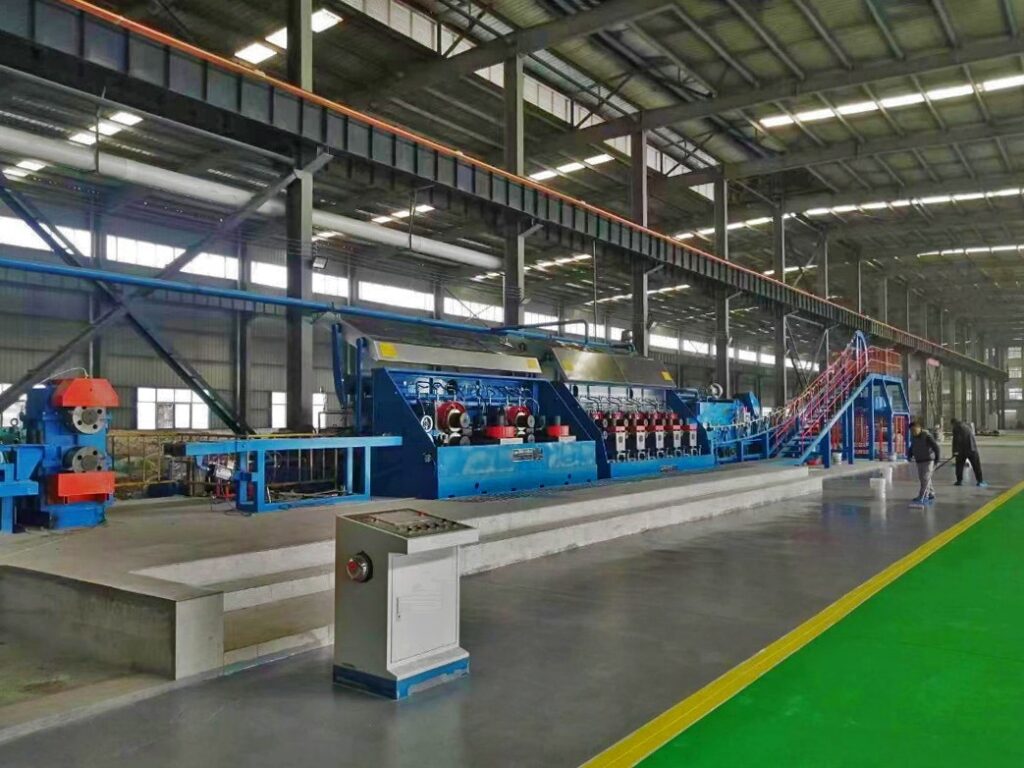

Our CCR ((Continuous Casting & Rolling) Line is your reliable partner for efficient, high-volume production of conductive copper rods. By integrating casting and rolling, it streamlines operations, reduces energy consumption, and yields consistent, ready-to-draw rod. The line’s robust, low-maintenance design minimizes operating costs, while its adaptable drive and quick-change features ensure high productivity and responsiveness to production needs. It represents a smart investment for securing a long-term supply of high-quality rod for wire and cable manufacturing.
Built for Long-Term Reliability: The integrally cast mill and superior rollers are designed for years of stable, low-downtime operation, protecting your production continuity.

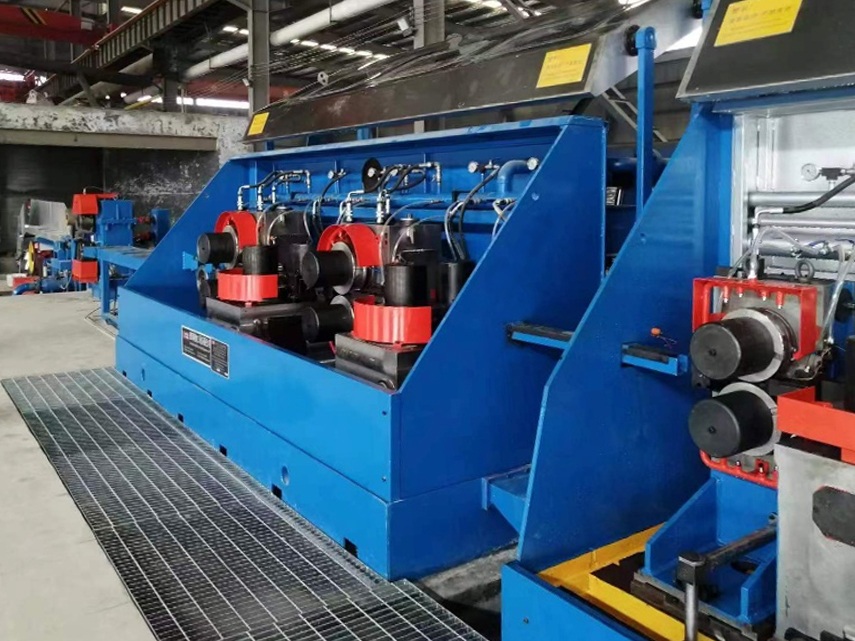

Minimizes Maintenance Downtime: Fast-disassembly roller stands enable quick servicing and changeovers, keeping your line running and improving overall equipment effectiveness (OEE).
Delivers Superior Product Quality: The advanced, flexible drive system ensures precise rolling control, resulting in rods with excellent surface finish, consistency, and electrical properties.
| Machine type | Casting wheel dia. | Section area of cast bar | Driving mode | Application (Alloy Grade) |
Aluminum rod dia. | Aluminum rod dia. | Power of rolling mill | Total power (Exclude furnace and accessory equipment) |
| UL-Z-1400+255/12 | 1400mm | 1500 mm² | 1 main motor + gearbox transmission | 1xxx 8xxx |
9.5mm, 12mm | 9.5mm, 13mm | 200kW | 300kW |
| UL-Z-1600+255/15 (only for pure Alu rod) |
1600mm | 2400mm² | 1 main motor + gearbox transmission | 1xxx 8xxx |
9.5mm, 12mm, 15mm | 9.5mm, 12mm, 16mm | 315kW | 400kW |
| UL-Z-1600+255/15 (for Alu Alloy rod) |
1600mm | 2400mm² | 1 main motor + gearbox transmission | 1xxx, 6201 6101, 8xxx |
-9.5mm, -12mm (just for pure alu rod) -15mm (just for pure alu rod) |
-9.5mm, -12mm (just for pure alu rod) -16mm (just for pure alu rod) |
400kW | 950kW |
| UL-Z-1800+255/15 | 1800mm | 2400mm² | 1 main motor + gearbox transmission | 1xxx 8xxx |
-9.5mm -12mm (just for pure alu rod) -15mm (just for pure alu rod) |
-9.5mm, -12mm (just for pure alu rod) -16mm (just for pure alu rod) |
315kW | 460kW |
| UL-Z-1800+360/ 2+320/2+265/8 |
1800mm | 2100mm² | Separate motor driving + ground shaft transmission | 1xxx, 6201, 6101 8xxx, 5154, 5356 |
-9.5mm, -12mm (just for pure alu rod) -15mm (just for pure alu rod) |
-9.5mm, -12mm (just for pure alu rod) -16mm (just for pure alu rod) |
1015kW (75+90+10 +110+60kW) |
1450kW |
| UL-Z-2200+360/ 2+320/2+232/10 |
2200mm | 3400mm² | Separate motor driving + gearbox transmission | 1xxx, 8xxx | -9.5mm, -12mm (just for pure alu rod) -15mm (just for pure alu rod) |
-9.5mm, -13mm (just for pure alu rod) |
730kW (55+75+7 +75+450kW) |
965kW |
