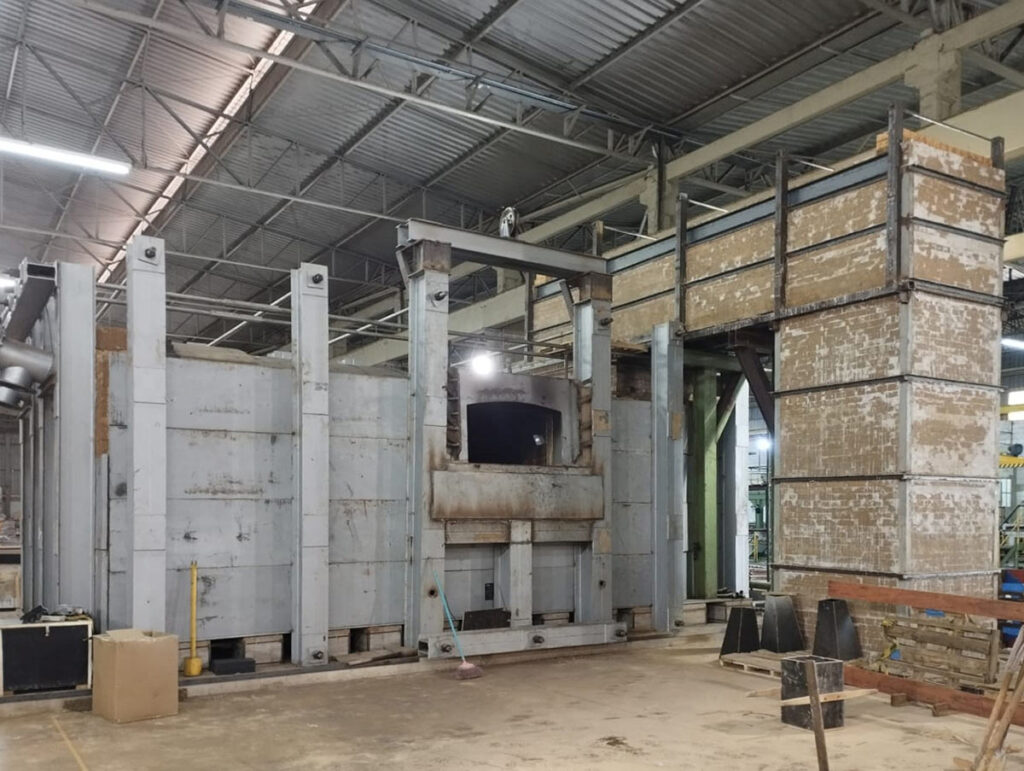

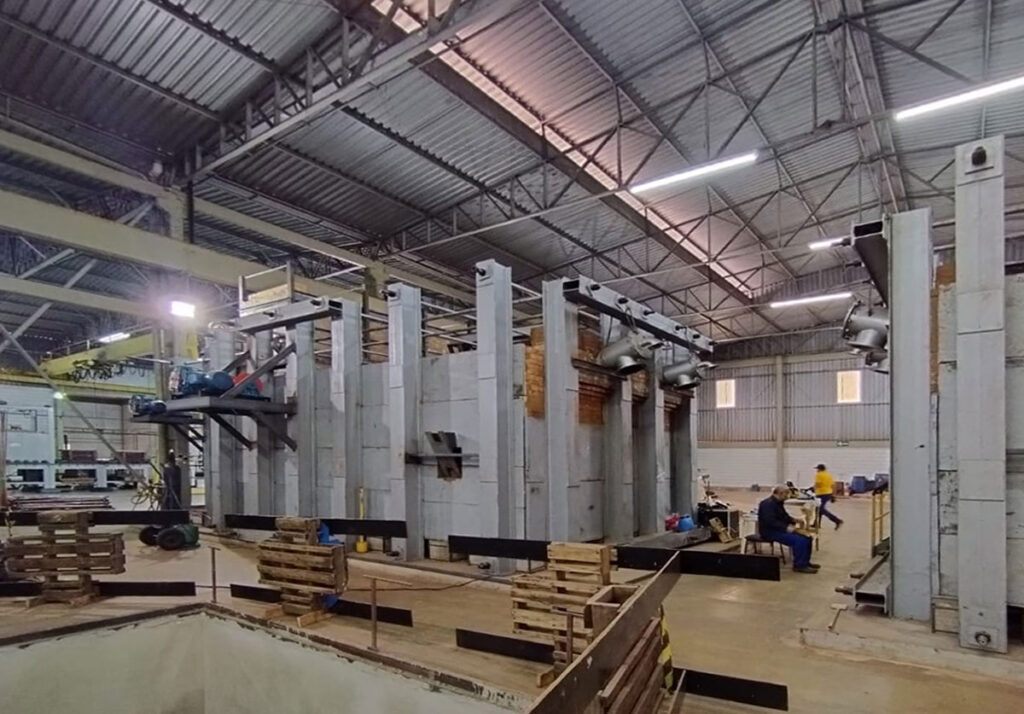

The Copper Reverberatory Furnace is a rectangular, stationary melting furnace designed for melting and refining copper scrap. It serves as the primary thermal unit in copper-rod Continuous Casting & Rolling (CCR) lines, supplying qualified molten copper for the production of Φ8/12.5/16 mm low-oxygen bright copper rods. The furnace uses radiant heat transfer from the roof and walls to the charge, and automatic fuel-flow adjustment maintains a precise bath temperature for stable melting and refining conditions.
Large melt-capacity options: 60 t / 80 t / 100 t to match different production scales.
Rectangular static design: optimized for radiant heat distribution, giving uniform melting and high thermal efficiency.
Multi-fuel firing: compatible with natural gas, heavy oil, or LPG.
Precise temperature control: automatic fuel-flow adjustment keeps bath temperature stable.
Built for continuous duty: heavy refractory lining and robust structure support 24/7 operation in CCR plants.
Integrated CCR application: melt is supplied directly to the downstream casting machine for ladder-like cast bars that are hot-rolled into Φ8/12.5/16 mm copper rod.
| Item | Parameter |
| Application | Melting and refining copper scrap for CCR lines |
| Furnace type | Rectangular shape, stationary (static) |
| Melt capacity | 60 t / 80 t / 100 t |
| Applicable raw material | Copper scraps |
| Heating method | Natural gas / Heavy oil / LPG |
| Temperature control | Automatic fuel-flow adjustment |
| Heat transfer mode | Radiant heat from roof and walls |
| Downstream product | Φ8 mm low-oxygen bright copper rod (via CCR) |
| Casting wheel diameter (CCR line) | 1900 mm |
| Casting speed (CCR line) | 10.17–13.11 m/min |
| Cast-sectional area of cast bar (CCR line) | 2300 mm² |
| Cooling-water consumption (CCR line) | 150 m³/h |
