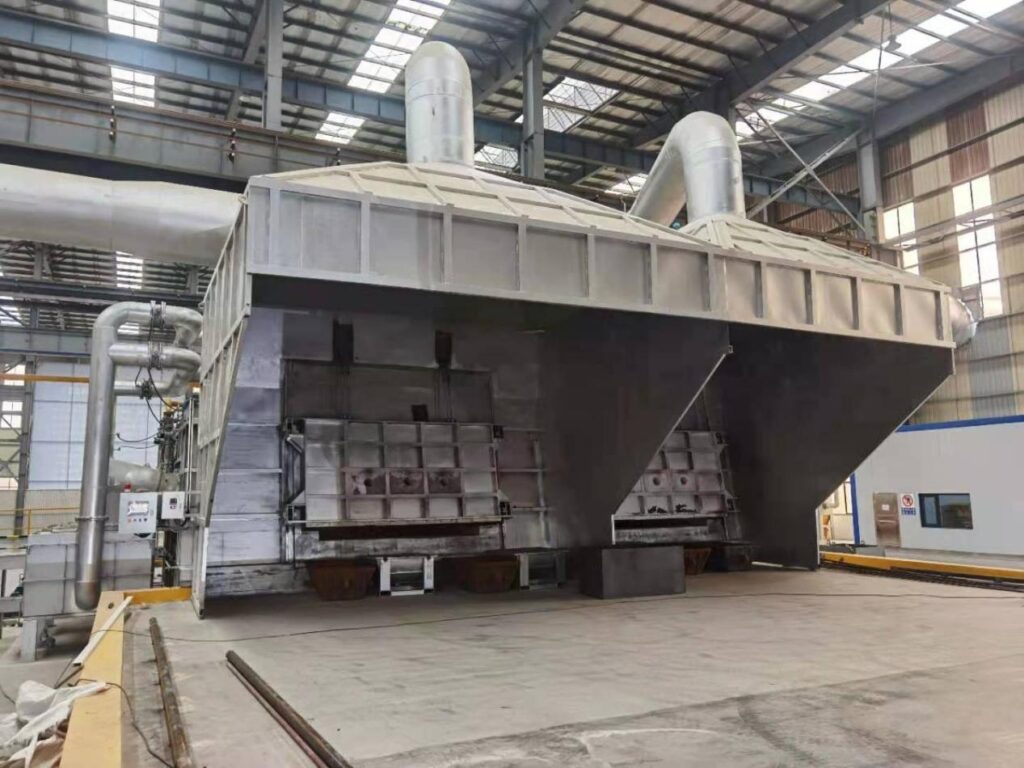

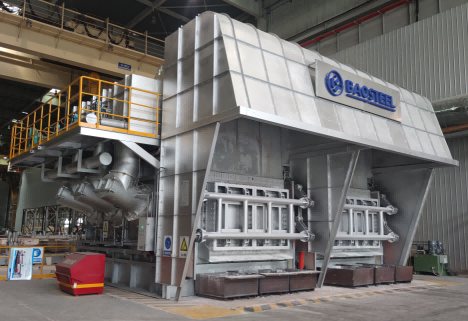

The Double-chamber aluminum melting furnace is an advanced industrial furnace specially designed for thin, small pieces aluminum scrap melting. It has heating chamber and charging chamber,and they share a common molten aluminum bath to keep the same temperature and atmospheres, achieving high efficiency, energy saving, low melting loss and environmental compliance.
-Melting chamber and holding chamber separated for continuous production.
-Low burning loss: minimizes oxidation and loss of aluminum.
-High thermal efficiency with effective waste heat recovery.
-Stable molten aluminum temperature and uniform composition.
-Low emission, environmentally friendly combustion system.
-Flexible operation: charging and tapping can be carried out simultaneously.
-High safety, suitable for melting oily or wet scrap aluminum.
| No. | Item | Parameter |
| 1 | Capacity | 30-100t |
| 2 | Raw material | Aluminum ingots, aluminum scraps that do not contain iron |
| 3 | Furnace type | Stationary |
| 4 | Melting rate | ≥3t Al. / hour(single chamber) |
| 5 | Gas consumption | ≥55m3/t·aluminum |
| 6 | Working temperature | ≤1100℃ |
| 7 | Combustion system | 2 sets (4 pcs) regenerative burners work alternately |
