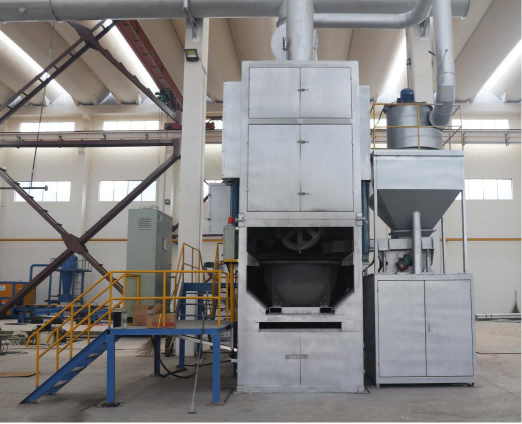

It is used to recovery the aluminum from the dross.
1. High efficiency: double-speed stirring, sufficient stirring;
2. High aluminum recovery rate: separation process of hotaluminum dross is advanced with ideal effect, and the aluminumrecovery rate can reach 90%;
3. Low cost: without secondary heating, utilizing the heatreleased in the process of aluminum oxidation in hot aluminumdross;
4. No pollution: high temperature dust collection system,better flue gas and dust purification effect;
5. Fully automated production: reducing operating workersand costs
6. Easy operation and maintenance;7. Cost-effective, high return on investment.
| No. | Item | Unit | Model | ||||
| 1000 | 800 | 600 | 400 | 200 | |||
| 1 | Pot capacity | m³ | 1 | 0.8 | 0.6 | 0.4 | 0.25 |
| 2 | Batch capacity | kg | 1300 | 1050 | 800 | 450 | 300 |
| 3 | Separation time | min | 8-14 | 8-14 | 7-13 | 6-11 | 5-10 |
| 4 | Processing time | min | 28-35 | 28-35 | 25-30 | 20-25 | 20-25 |
| 5 | Dross temperature | ℃ | 760-800 | 760-800 | 760-800 | 760-800 | 760-800 |
| 6 | Overall Aluminum recovery rate | % | 75-90 | 75-90 | 75-90 | 75-90 | 75-90 |
| 7 | Rated capacity | t/y | 12,000-15,000 | 10,000-12000 | 8,000-10,000 | 5,500-6,000 | 3,000 |
| 8 | Size (L×W×H) | mm | 16500×6500× 8000 | 15000×6000×7500 | 15000×6000×7500 | 13000×5800×7200 | 10000×5000×6000 |
| 9 | Evacuation rate | m³/h | 60,000 | 50,000 | 40,000 | 25,000 | 15,0000 |
| NO. | Item | Capacity | Advantage | Application |
| 1 | Fixed Pot | 100-1000 kg /batch | Low investment, low processing cost, easy operation and maintenance,
Al recovery rate >90% |
Hot dross,
Aluminum billet production line |
| 2 | Automatic dross recovery line (movable pot) | 300-1000 kg /batch | High automatic level, low labor intensity , clean and less pollution, suitable for high requirement project,
Al recovery rate >90% |
|
| 3 | Rotary furnace | 3-8t/ batch,
15-50t/day/24h for cold dross, 20-80t/day/24h for hot dross |
Big capacity, specially for cold dross and high iron containing dross,
Al recovery rate >80% |
Cold dross , hot dross and mixed dross,
High iron containing dross, Aluminum ingot production line |
| NO. | Item | Capacity | Advantage | Application |
| 1 | Fixed Pot | 100-1000 kg /batch | Low investment, low processing cost, easy operation and maintenance,
Al recovery rate >90% |
Hot dross,
Aluminum billet production line |
| 2 | Automatic dross recovery line (movable pot) | 300-1000 kg /batch | High automatic level, low labor intensity , clean and less pollution, suitable for high requirement project,
Al recovery rate >90% |
|
| 3 | Rotary furnace | 3-8t/ batch,
15-50t/day/24h for cold dross, 20-80t/day/24h for hot dross |
Big capacity, specially for cold dross and high iron containing dross,
Al recovery rate >80% |
Cold dross , hot dross and mixed dross,
High iron containing dross, Aluminum ingot production line |
