Stranding machines are core production equipment in the wire and cable industry, designed to twist multiple individual metallic or non-metallic wires into a single, helical stranded conductor or cable. This process significantly improves the flexibility, tensile strength, and electrical conductivity of the final product, making it essential for producing high-performance wires used across numerous sectors.

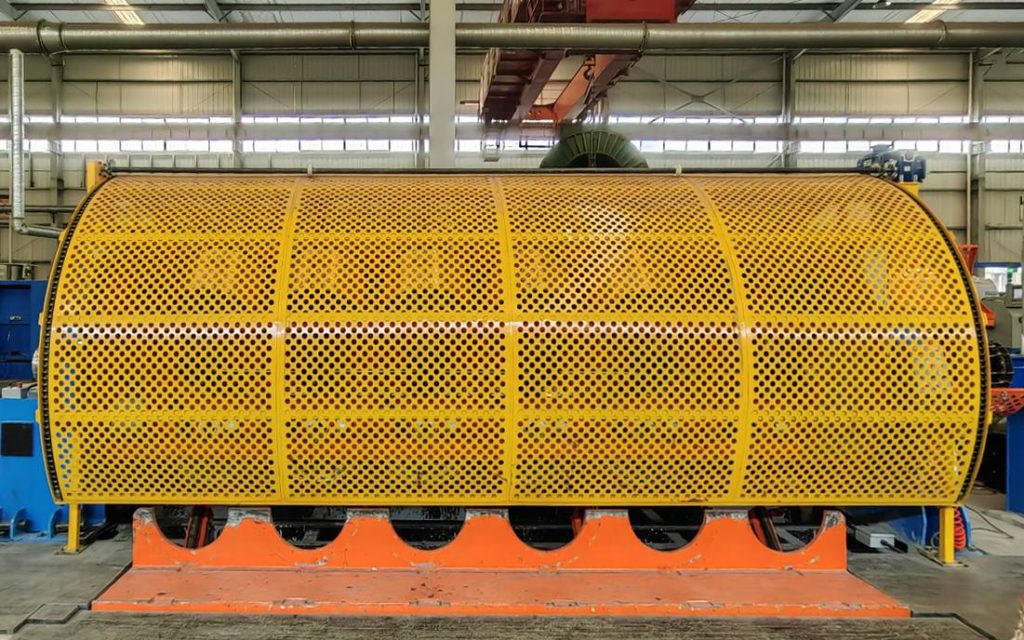

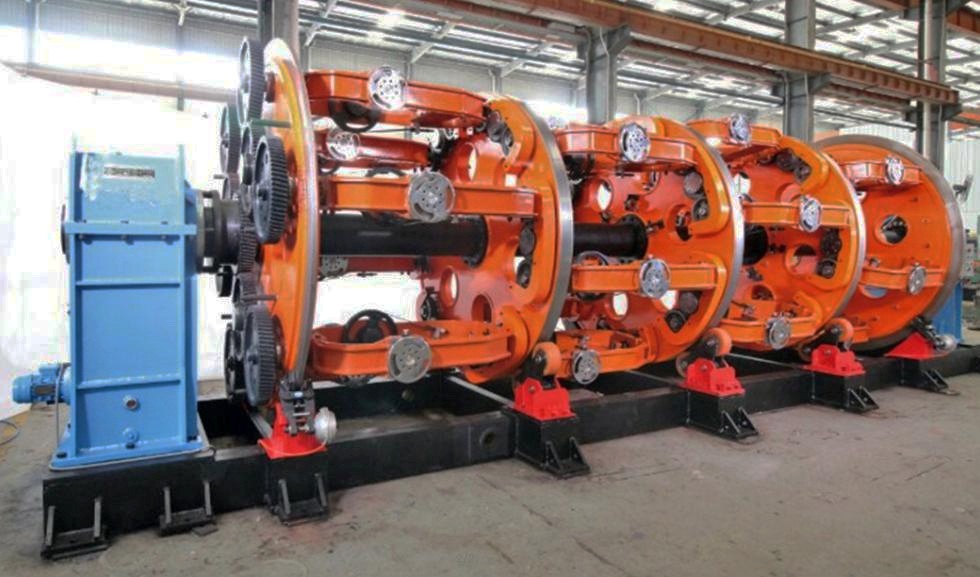

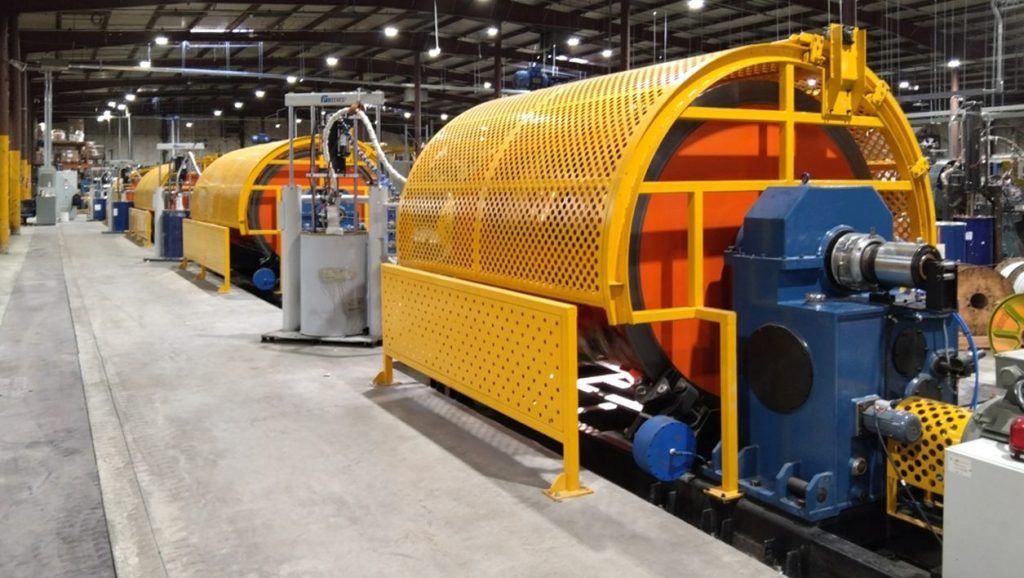

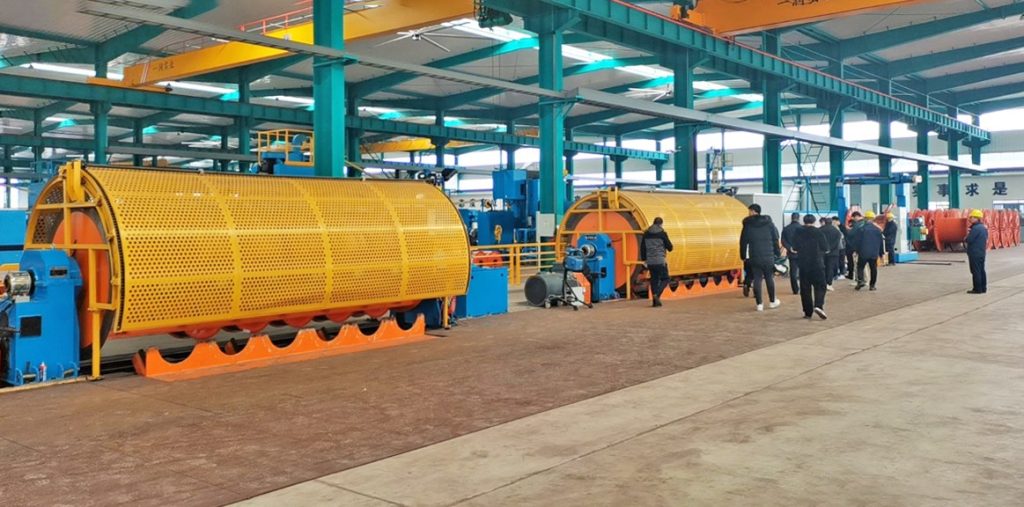

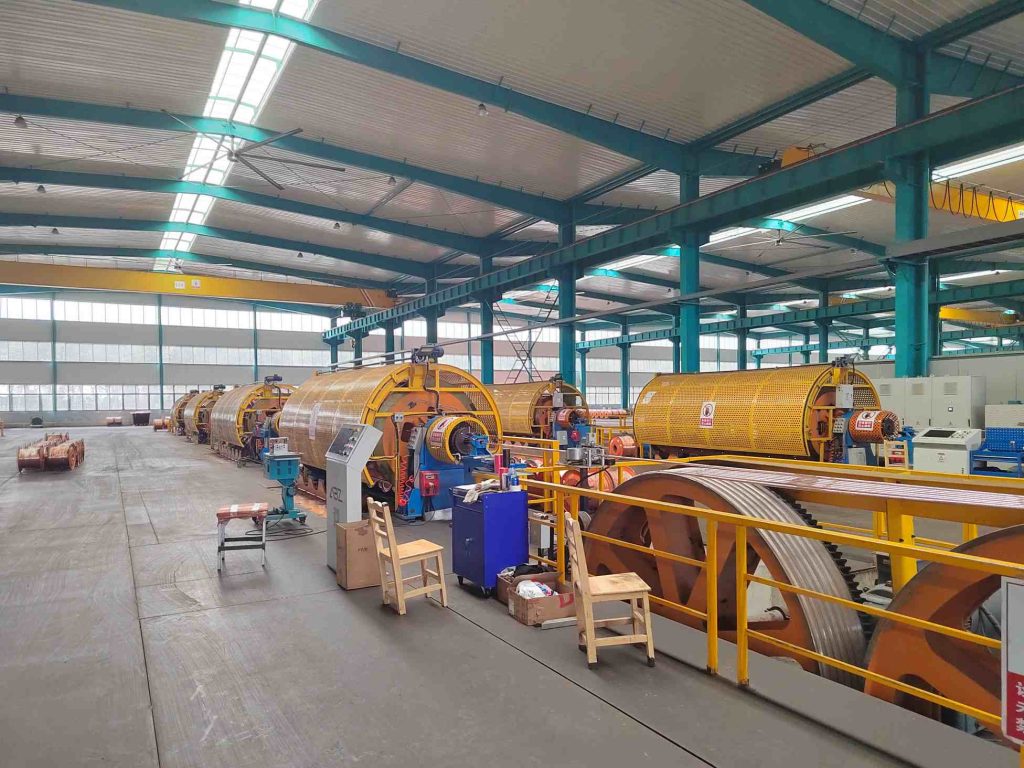

Rigid Frame Stranding Machine is one of the most widely used stranding machines in the wire and cable industry, especially for medium and high voltage power cables. It is typically used for stranding various types of bare copper wires, bare aluminum wires, copper-aluminum alloy wires, plastic-coated flexible wires, etc.

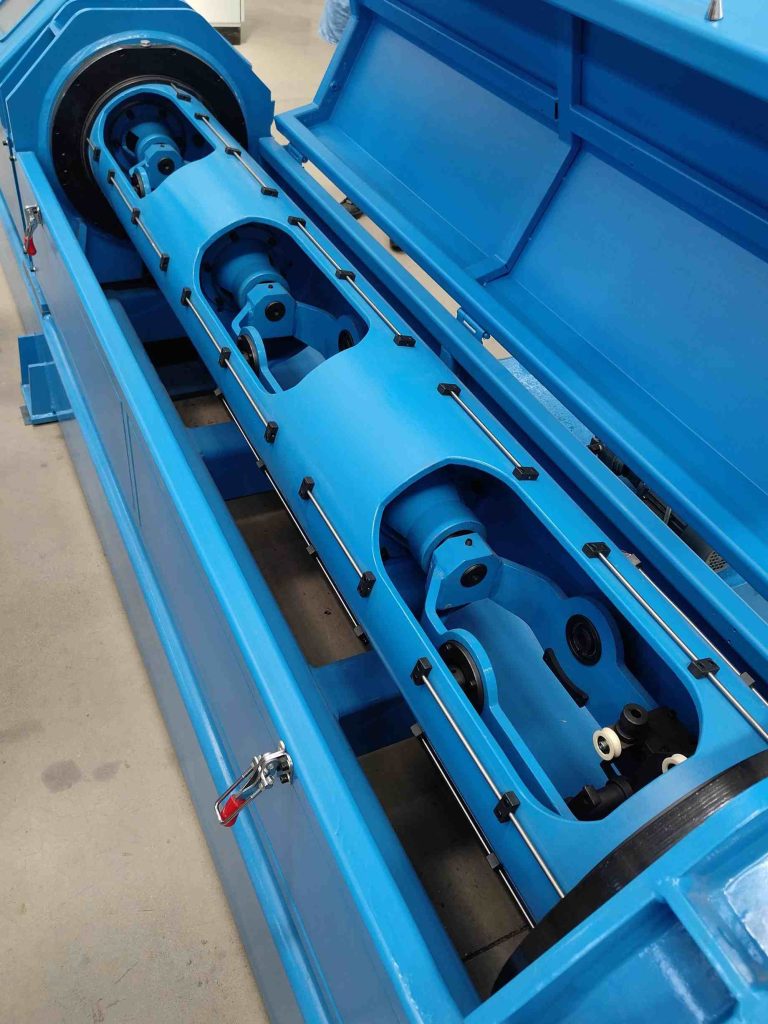

It is mainly used for stranding medium and small crosssection conductors, including bare copper wires, bare aluminum wires, bare aluminum wires, copper-aluminum alloy wires, coated copper and aluminum wires, bunched multi-strand flexible wires, etc.

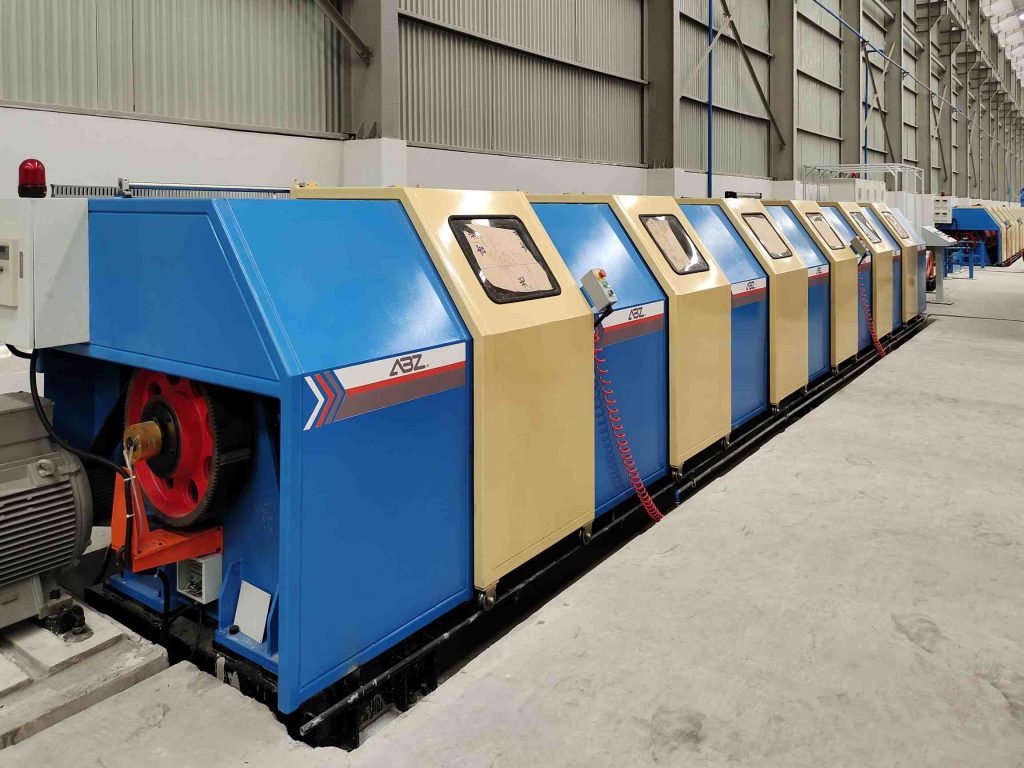

It is mainly used for stranding control cables, signal cables, or computer cables, and can also be used for stranding bare copper, bare aluminum, and multi-strand soft copper wires. It adopts segmented, multi-motor independent drive. With electrical intelligent control, the lay length can be adjusted arbitrarily.
Centralized control via a user-friendly PLC interface provides real-time monitoring of all key parameters, simplifying operation and facilitating proactive maintenance.
Precision Servo Control: Employs a servo motor-driven capstan system for exceptional control over line speed and lay length, ensuring consistent, repeatable stranding quality.
Advanced Tension Management: Features a closed-loop tension control system that maintains uniform wire tension across all bobbins, preventing slack or over-tightening for a perfectly balanced strand.
Intuitive Operation & Monitoring: Built with a heavy-duty, vibration-resistant frame. Its modular bobbin carrier system allows for quick changeovers between different stranding patterns and conductor sizes.
Precision Servo Control: Employs a servo motor-driven capstan system for exceptional control over line speed and lay length, ensuring consistent, repeatable stranding quality.
Advanced Tension Management: Features a closed-loop tension control system that maintains uniform wire tension across all bobbins, preventing slack or over-tightening for a perfectly balanced strand.
Intuitive Operation & Monitoring: Built with a heavy-duty, vibration-resistant frame. Its modular bobbin carrier system allows for quick changeovers between different stranding patterns and conductor sizes.
Precision Servo Control: Employs a servo motor-driven capstan system for exceptional control over line speed and lay length, ensuring consistent, repeatable stranding quality.
Advanced Tension Management: Features a closed-loop tension control system that maintains uniform wire tension across all bobbins, preventing slack or over-tightening for a perfectly balanced strand.
Intuitive Operation & Monitoring: Built with a heavy-duty, vibration-resistant frame. Its modular bobbin carrier system allows for quick changeovers between different stranding patterns and conductor sizes.
Al Ø1.8-Ø5.0mm
12Bcage 55KW AC Siemens Al/Cu Max 200/180 rpm
18Bcage 55KW AC Siemens Al/Cu Max 180/160 rpm
24Bcage 75KW AC Siemens Al/Cu Max 160/145 rpm
