Cathode copper/Scrap copper → melting furnace → transition chamber → holding furnace → casting machine (crystal molding) → casting rod → take-up device → on sale or further producing

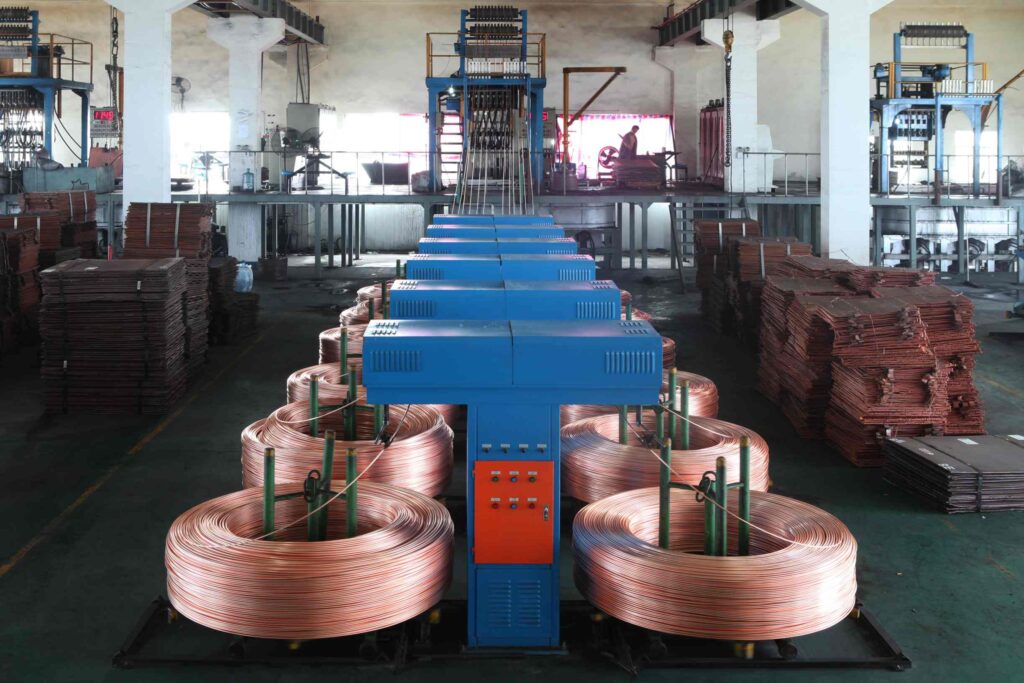

Put the cathode copper into the melting furnace of QL1 compounded furnace straightly. It will be melted into liquid by a frequency inductor. Then the liquid of copper smoothly pass through the transition chamber and will flood into the holding furnace automatically , and then it will be deoxidized by the charcoal covered. The liquid of copper will become a casting rod quickly by the crystallizer of the casting machine in the holding furnace. Then it will be hauled by the double-withdrawal roller of the casting machine. When the casting rod is hauled off, it will be led to take-up device.
| No. | Annual output (Ton) | Casting strands | Rod dia. (mm) | Servo drive Qty. | Installed capacity (KVA) | Power consumption (KWH/Ton) |
| 1 | 2000 | 4 | 8~20 | 1 | 330 | ≤ 350 |
| 2 | 3000 | 6 | 8~20 | 2 | 330 | ≤ 350 |
| 12.5~30 | 2 | |||||
| 3 | 5000 | 10 | 8~20 | 2 | 470 | ≤ 320 |
| 4 | 6000 | 10 | 12.5~30 | 2 | 480 | ≤ 320 |
| 12 | 8~20 | 2 | ≤ 330 | |||
| 5 | 10000 | 16 | 12.5~30 | 2 | 950 | ≤ 300 |
| 20 | 8~20 | 2 | ||||
| 6 | 12000 | 20 | 12.5~30 | 2 | 1150 | ≤ 300 |
| 24 | 8~20 | 4 | ||||
| 7 | 15000 | 24 | 12.5~30 | 4 | 1150 | ≤ 300 |
| 28 | 8~20 | 4 |
| Parameter | Value |
|---|---|
| Cast rod gravity | 8.93 g/cm³ |
| Rod tensile strength | ≥ 170 N/mm² |
| Rod elongation | ≥ 35% |
| Conductivity | 100-102% IACS |
| Oxygen content | < 10 ppm |
| Parameter | Value |
|---|---|
| Cast rod gravity | 8.93 g/cm³ |
| Rod tensile strength | ≥ 170 N/mm² |
| Rod elongation | ≥ 35% |
| Conductivity | 100-102% IACS |
| Oxygen content | < 10 ppm |
