Aluminum Reverberatory Melting Furnace & Holding Furnace

Aluminum Melting Reverberatory Furnace is a classic and widely used thermal equipment specifically designed for melting aluminum ingots, aluminum scrap, and various aluminum alloys.

The flame generated by the burner does not directly contact the aluminum charge. Instead, it transfers heat to the aluminum charge through radiation and reflection from the furnace roof and side walls,avoids local overheating of the aluminum liquid, minimizes aluminum oxidation burn-off, and ensures the purity and uniform quality of the molten aluminum.

Furnace Type

The furnace door has a large design range(2.5 m to 6.5 m), which can meet the requirements of different users.

Low energy consumption, gas consumption can be low to 52 m³/ tonaluminum (calculated according to natural gas).

If using regenerative combustion system, exhaust temperature is low to about 250℃, so as to reduce the heat taken away from the furnace and reduce energy consumption.

Temperature control methods: thermocouple non-continuous temperature measurement, automatic adjustment of firepower.

Simple and stable structure

1.Low manufacturing and maintenance costs;

2.Small floor space; strong overall rigidity, not easy to deform, long service life; suitable for stable continuous production;

3.Simple operation, low technical requirements for operators;

4.Stable furnace temperature, ensuring uniform molten aluminum quality.

Same liquid levelbetween the discharging port and the launder to avoid splashing of molten aluminumand impurity suction;

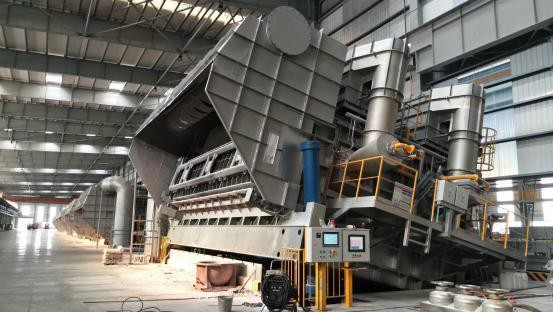

Automatically adjust the tilting angle of the furnace according to the liquid level in the launder to obtain a stable flow rate

The molten aluminum can be poured clean at one timeand it is easy to change alloy.

More safe. In the event of an emergency, the furnace can automatically return to uprightand the discharge of molten aluminum stops.

Specification

No. Item Parameter

1 Capacity 3-120t

2 Furnace type Rectangular,round

5 Melting rate 2-12t Al./ hour

6 Temperature accuracy ±5℃

7 Gas consumption ≤60Nm³/t-Al(Natural gas) when melting

≤15Nm³/t-Al(Natural gas) when holding

8 Furnace chamber temperature 1100℃, Maximum 1200℃

Aluminum liquid temperature 700℃～850℃

9 Combustion system Regenerative/High temperature and high speed burner

No. Item Parameter

1 Capacity 3-100t

2 Furnace type Rectangular/Round

3 Melting rate 2-12 t Al./hour

5 Temperature accuracy ±5℃

6 Gas consumption ≤60Nm³/t-Al(Natural gas) when melting

≤15Nm³/t-Al(Natural gas) when holding

7 Furnace chamber temperature 1100℃, Maximum 1200℃

Aluminum liquid temperature 700℃～850℃

8 Combustion system Regenerative/High temperature and high speed burner
