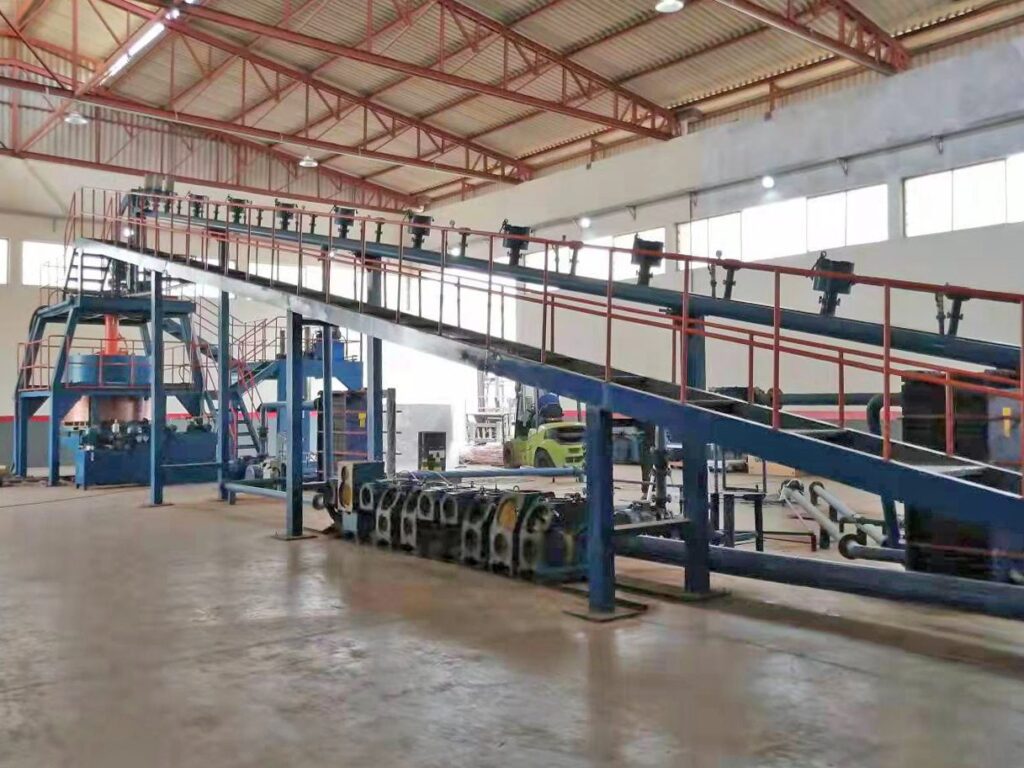

Our CCR Line is your reliable partner for efficient, high-volume production of conductive copper rods. By integrating casting and rolling, it streamlines operations, reduces energy consumption, and yields consistent, ready-to-draw rod. The line’s robust, low-maintenance design minimizes operating costs, while its adaptable drive and quick-change features ensure high productivity and responsiveness to production needs. It represents a smart investment for securing a long-term supply of high-quality rod for wire and cable manufacturing.
Built for Long-Term Reliability: The integrally cast mill and superior rollers are designed for years of stable, low-downtime operation, protecting your production continuity.
Minimizes Maintenance Downtime: Fast-disassembly roller stands enable quick servicing and changeovers, keeping your line running and improving overall equipment effectiveness (OEE).
Delivers Superior Product Quality: The advanced, flexible drive system ensures precise rolling control, resulting in rods with excellent surface finish, consistency, and electrical properties.
| Machinetype(轧机型号) | Casting wheel diameter | Section area of cast bar | Driving mode | Stand combination | Application | Coiler type | Cooper rod diameter | Capacity |
| UL+Z-1900+255/15 (only for copper) |
1900mm | 2100mm² | 1 main motor + gearbox transmission | 4 (2 rollers) + 8 (3 rollers) |
Copper rod | Common type | 8mm 12.5 mm 16 mm |
14-16T/h |
| UL+Z-1900+320/2+255/10 (only for copper) |
1900mm | 2100mm² | 1 main motor + Gear box transmission | 4 (2 rollers) + 6 (3 rollers) + 2 (3 rollers) |
Copper rod | Lifting + compacted type | 8mm | |
| UL+Z-2100+310/2+255/10 (only for copper) |
2100mm | 2170mm² | Separate motor driving + integral driving | 2 (2 rollers; separate motor driving) + 10 (3 rollers; 1 main motor + gearbox transmission) |
Copper rod | Lifting + compacted type | 8mm | 12-14T/h |
| UL+Z-2100+360/2+255/12 (only for copper) |
2100mm | 3700mm² | Separate motor driving + integral driving | 2 (2 rollers; separate motor driving) + 12 (3 rollers; 1 main motor + gearbox transmission) |
Copper rod | Lifting and compacted type | 8mm | 17-18T/h |
