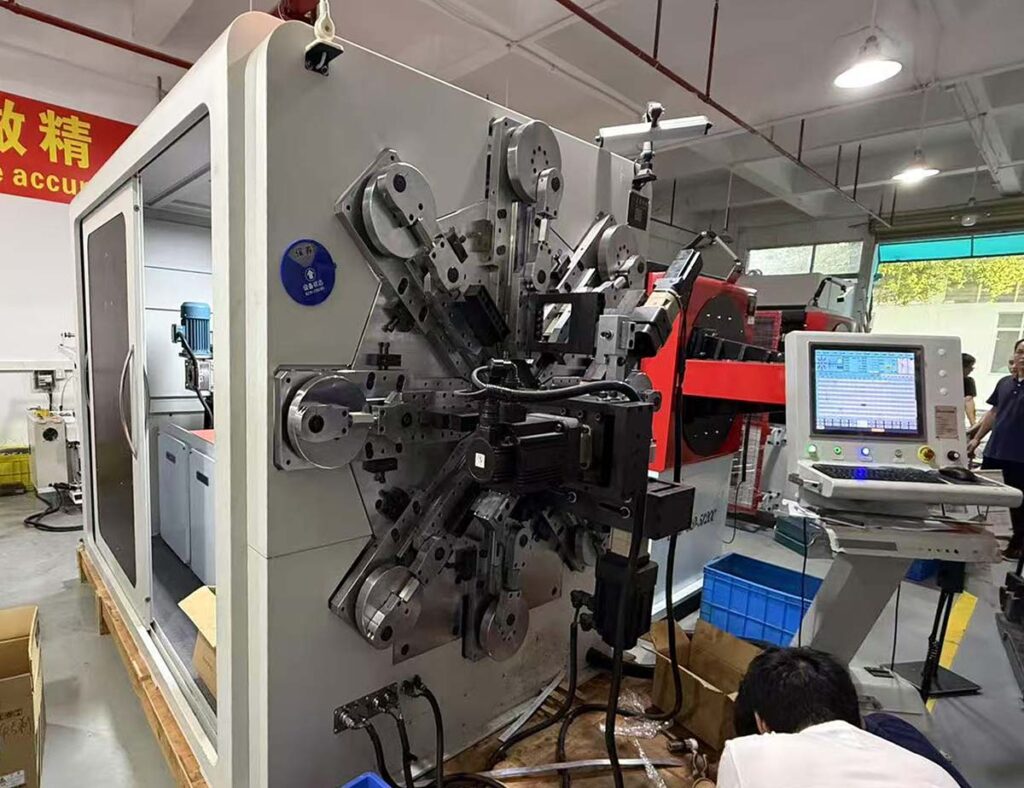

Universal – B Series
The BL Series is a fully automatic CNC busbar processing machine designed for complex and delicate workpieces. Featuring a crawler feeding system and a multi-arm forming unit with up to 13 axes, it delivers exceptional flexibility for intricate bending and punching operations. This series is ideal for applications requiring high precision and rapid tooling changeovers, such as custom electrical components and complex busbar shapes.

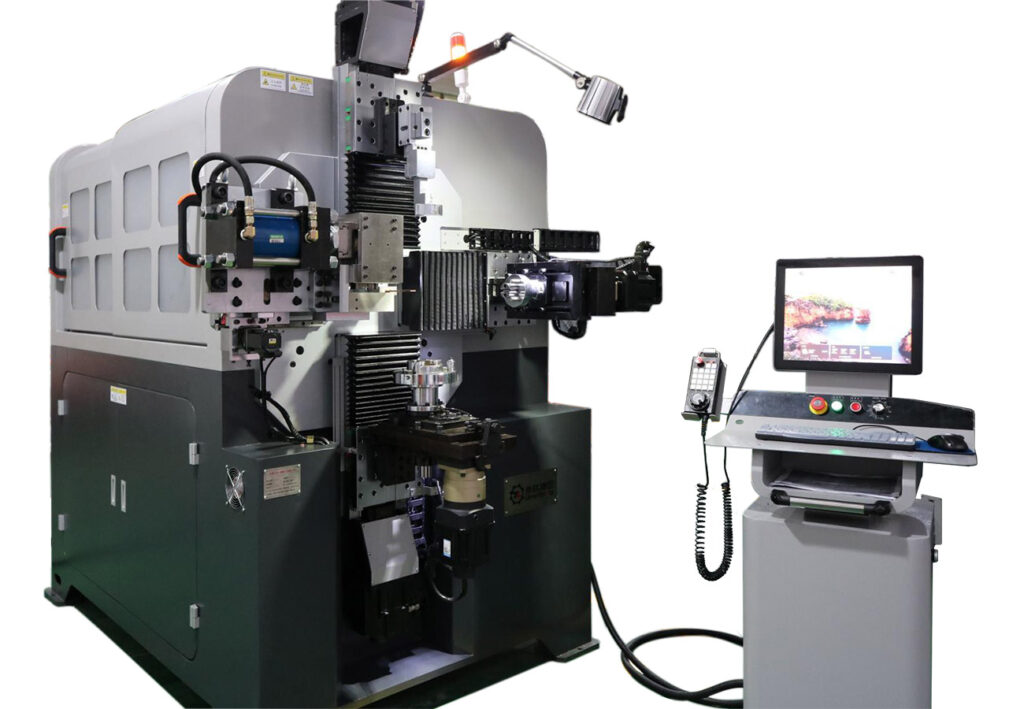

Universal – E Series
The E Series is a fully automatic 3-in-1 CNC busbar processing machine integrating punching, bending, and cutting. Designed for thicker and wider materials up to 100mm in width and 10mm in thickness, this series features a synchronized pay-off system and a high-performance industrial CNC controller. It is ideal for high-volume production in electrical panel and switchgear manufacturing, offering automated programming with 3D simulation to ensure precision and repeatability.
Multi-Arm Forming System
Equipped with up to 13 axes, the machine performs complex bending sequences in a single cycle without manual repositioning.
Automatic Centering
Encoder-based feeding with auto-centering ensures consistent positioning accuracy, even with varying material widths.
Quick Tool-Changing
The R-block replacement system allows for rapid tool changes, drastically reducing downtime between job transitions.
| Model | B-45-6 | B-50-7 |
| Processing | Thickness: 2.0-6.0mm | Thickness: 2.0-7.0mm |
| Width: 10.0-45.0mm | Width: 10.0-50.0mm | |
| Control Axes | 12-14 axes | 13 axes |
| Servo Power | Total: 35.2KW | Total: 63KW/61KW |
| Key Motors | Wire Feed: 4.5KW | Wire Feed: 5.5KW |
| Rotation: 2.7KW | Rotation: 5.5KW/4.5KW | |
| Coiling: 2.0KW×2 | Coiling: 1.5KW + 5.5KW/4.5KW | |
| Arms: 2.0KW×6 + 5.5KW×2 | Arms: 5.5KW×8 | |
| Shear: 1.0KW | Shear: 1.0KW | |
| Voltage | 380V (±20V) | 380V (±20V) |
| Weight | Main Unit: 6000KG | Main Unit: 7500KG |
| Feeder: 1000KG | Feeder: 1500KG |
Servo-Driven Synchronization
All axes are powered by high-torque servo motors, ensuring precise coordination between feeding, punching, and bending for tight tolerances.
8-Station Movable Punching
The movable punching unit eliminates the need for manual die changes, enabling rapid transitions between different hole patterns and sizes.
Industrial CNC Controller
A rugged, industry-proven control unit manages all operations, providing real-time feedback and ensuring stable performance under continuous load.
| Model | E-50-6 | E-80-8 | E-100-10 |
| Processing Capacity (W×T) | ≤50×6mm | ≤80×8mm | ≤100×10mm |
| Axis Qty | 10 | 10 | 10 |
| Wire Feed Wheel Qty | 4 | 4 | 4 |
| Wire Feeding | 5.5kW | 7.5kW | 7.5kW |
| Slide Axis | 2.7KW×3 | 3.0KWx3 | 5.5KWx3 |
| Spinner Axis | 2.0kWx2 | 2.0kWx2 | 4.0kWx2 |
| Punching Axis | 7.5kW | 7.5kW | 7.5kW |
| Punch Moving Axis | 0.75kW | 0.75kW | 1.0kW |
| Punching-die Moving Axis | 1.2kW | 1.2kW | 2.9kW |
| Cutter Axis | 1.0kW | 1.5kW | 1.5kW |
| Cutter Moving Axis | 0.4kW | 0.75kW | 1.0kW |
| Punching Pressure | 8t | 19t | 30t |
| Dimension (L×W×H) mm | 4200×2000×2000 | 4650×2300×2100 | 4750×2300×2200 |
| Weight (kg) | 5000 | 7500 | 8000 |
