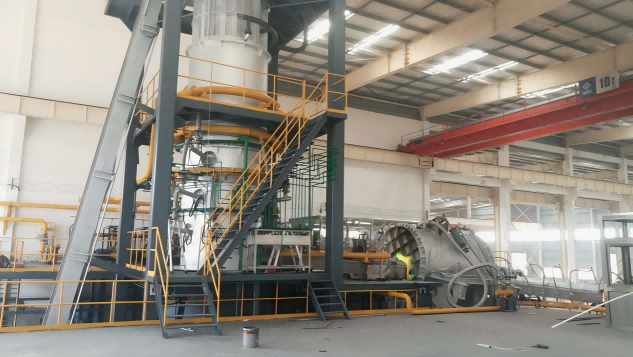

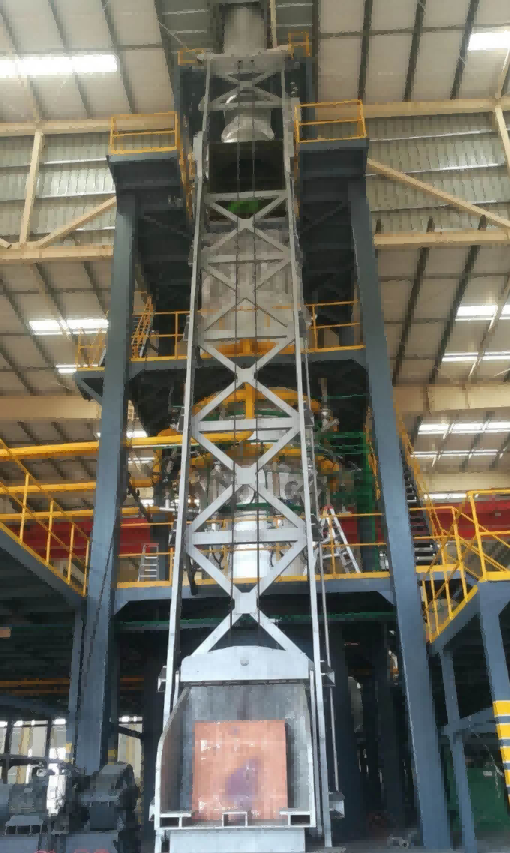

The shaft furnace is a high-efficiency, energy-saving aluminum melting equipment designed for continuous aluminum smelting processes (e.g., continuous casting, rolling, die casting). It features a vertical shaft structure with a large-cross-section flue at the rear and a high-speed burner at the flue bottom.
High thermal efficiency: Flue gas waste heat fully utilized.
Fast melting: Vertical preheating + flame impact.
Low burn-off: Flame away from charge, uniform heating.
Compact & easy operation: Top charging, no interruption to melting.
| Item | Parameters | Remark |
| Melting Capacity | 0.1–6 t/h | |
| Energy Consumption | ≤55×10⁴ kcal/tAl | |
| Burning loss | ≤0.8–2.0% | ≤0.8% for pure ingots; ≤2.0% for 50% scrap |
| Operating Temperature | Furnace: ≤1150°C; Molten Al: 680–760°C | Max furnace temp: 1200°C |
| Burner Type | Cold air High-speed burner | |
| Furnace Pressure | Micro positive pressure | Manual/auto control |
| Control System | PLC | Auto monitoring & data logging |
